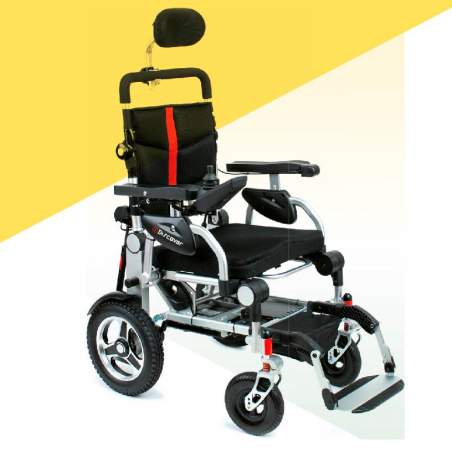

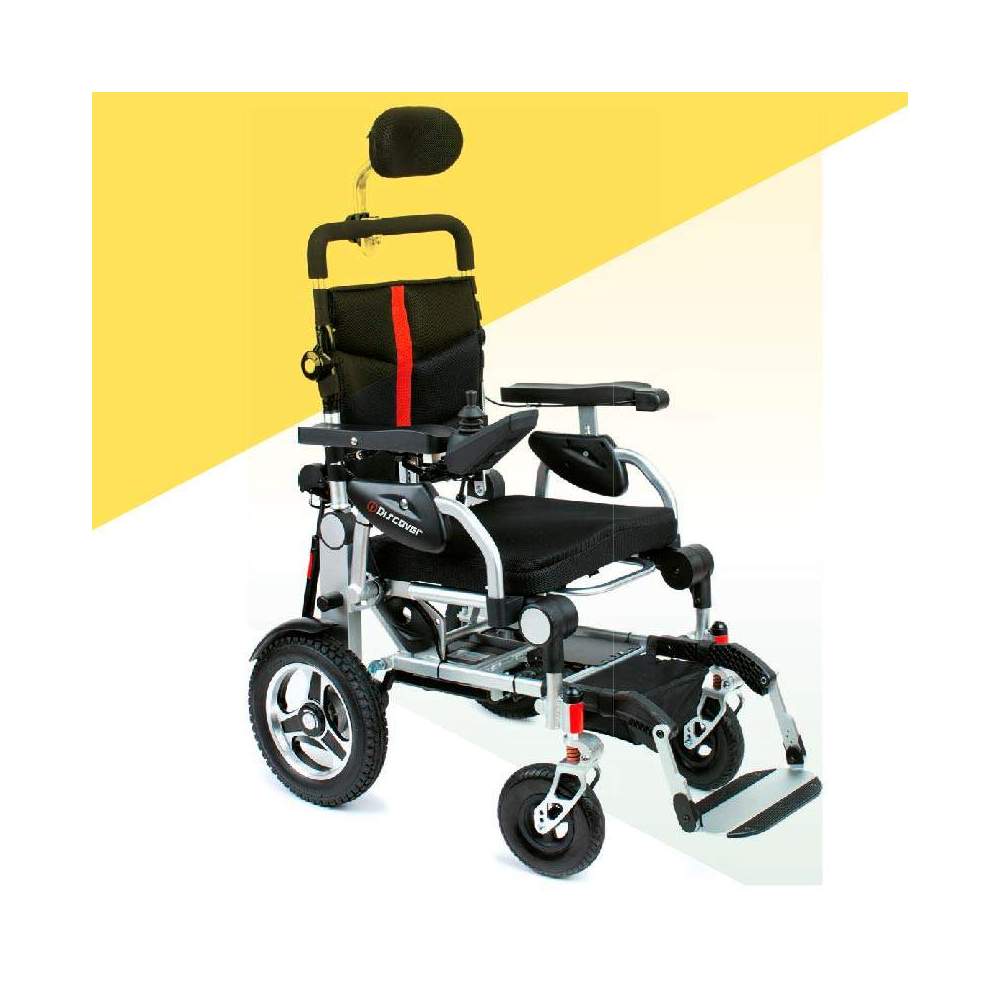

I-Discover foldable wheelchair
We present you the I-DISCOVER chair by Apex . The NEW ultralight folding chair that adapts to each user thanks to its innovative features.
We present you the I-DISCOVER chair by Apex. The NEW ultralight folding chair that adapts to each user thanks to its innovative features.
Its "Easy click" folding system allows folding with one hand and is easily transported and stored due to its compact dimensions (42.5 x 61 x 90 cm folded).
CUSTOMIZABLE
- Hydraulic backrest reclining up to 35º, which favors the relief of pressure. The height is also adjusted up to 6 cm.
-Rolling footrest: adjustable in height and angle that adapts to the height of each user.
-Folding armrests and adjustable in height and depth.
-Adjustable headrest adjustable in angle and height.
DIGITAL JOYSTICK WITH VOICE
-Allows you to choose the driving mode between: ECO (optimized driving), NOR (normal driving) and SPT (sports driving).
-Has voice commands
- Shows the percentage of battery charge thanks to the BMS smart chip
COMFORTABLE
- Front suspension Frog Legs that avoids the vibrations of the pavement.
-Supports a weight of 150 Kg
Unfolded dimensions (length x width x height)
103 x 61 x 103 cm
Dimensions unfolded with folded footrest (length x width x height)
93 x 61 x 103 cm
Folded dimensions (length x width x height)
42.5 x 61 x 90 cm
Seat dimensions (width x length)
46 x 44 x 6 cm
Height of the floor to the seat 52 cm
Adjustable footrest 10 -17 cm
Maximum weight supported 150 kg
Weight with batteries 34 kg
Weight without batteries 31.5 kg
Maximum speed
4.5 - 6 km / h (depending on driving mode)
Maximum slope 12º
Turning radius 83.5 cm
Tipor motor Motor 24V x 250W (brushless)
Front wheels 8 "Solid
Rear wheels 12 "Solid
12Ah / 24V batteries
Certificates
EC. Manufactured according to ISO7176 and FDA standards
Warranty
Frame 5 years
Batteries 6 months
Electronic components 1 year
SRE000A - i Discover 2
