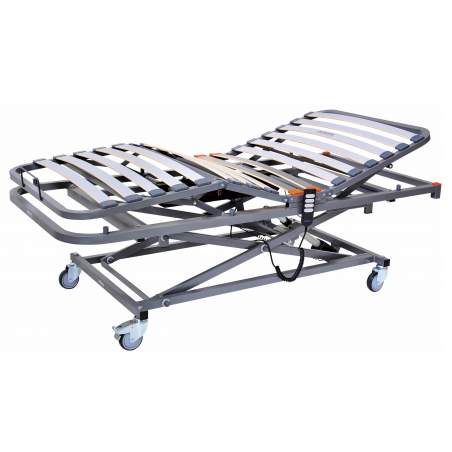

Cama articulada Gerialift - 90 x 180 cms
Articulated bed with electric lift carriage measures 80 cm x 190 cm
Articulated electric sanitary bed with 4 planes and lift truck
Electronic lift by scissors
80 cm x 190 cm
• System composed of GERIA bed with lift truck.
• Electronically articulated bed of 4 planes.
• Bed superimposed on the frame, wide rest area.
• Made with 1.5 to 3 mm thick steel tube and sections of 30 x 30 and 35 x 35 mm.
• Electrical regulation of the thorax, thigh and leg sections.
• System of electric lift with scissor mechanism .
• Safety low voltage motorization, double insulation and emergency battery (back to 0).
• Ergonomic remote control cable for the management of all functions.
• Motorization with degree of protection IPX4.
• Double-pole flap holder in flexible thermoplastic material.
• Nylon hinges in the joints, avoid noise and reduce friction.
• Teflon plastic washers in all turns.
• Assembly with screws to facilitate maintenance.
• Lamas of 100% beech plywood, vaporized with textured and decorative coating.
• Polyamide accommodations for accessories in the corners of the headboard.
• Systemanti-trappingbetween the moving parts.
• Mattress pad on the feet.
• High strength epoxy polyester paint.
• 4 100 mm wheels; two of them with individual total brake.
• Free height of 13 cm for crane access.
• Useful dimensions: 90 x 190 cm.
• Exterior dimensions with headboard, footboard and handrails: 102 x 202 cm.
• Approximate articulation angles: trunk 70º / thighs 43º / legs -12º.
•Adjustable height between 37 and 80 cm
• Maximum user weight: 135 kg .
• Maximum allowable weight: 180 kg.
